Mutation testing for librsvg

I was reading a blog post about the testing strategy for the Wild linker, when I came upon a link to cargo-mutants, a mutation testing tool for Rust. The tool promised to be easy to set up, so I gave it a try. I'm happy to find that it totally delivers!

Briefly: mutation testing catches cases where bugs are deliberately inserted in the source code, but the test suite fails to catch them: after making the incorrect changes, all the tests still pass. This indicates a gap in the test suite.

Previously I had only seen mentions of "mutation testing" in passing, as something exotic to be done when testing compilers. I don't recall seeing it as a general tool; maybe I have not been looking closely enough.

Setup and running

Setting up cargo-mutants is easy enough: you can cargo install cargo-mutants and run it with cargo mutants.

For librsvg this ran for a few hours, but I discovered a couple of things related to the way the librsvg repository is structured. The repo is a cargo workspace with multiple crates: the librsvg implementation and public Rust API, the rsvg-convert binary, and some utilities like rsvg-bench.

1. By default cargo-mutants only seemed to pick up the tests for rsvg-convert. I think it may have done this because it is the only binary in the workspace that has a test suite (e.g. rsvg-bench does not have a test suite).

2. I had to run cargo mutants --package librsvg to tell it to consider the test suite for the librsvg crate, which is the main library. I think I could have used cargo mutants --workspace to make it run all the things; maybe I'll try that next time.

Initial results

My initial run on rsvg-covert produced useful results; cargo-mutants found 32 mutations in the rsvg-convert source code that ought to have caused failures, but the test suite didn't catch them.

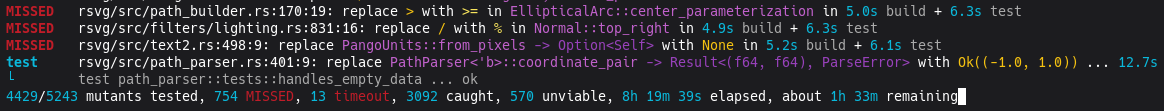

The second run, on the librsvg crate, took about 10 hours. It is fascinating to watch it run. In the end it found 889 mutations with bugs that the test suite couldn't catch:

5243 mutants tested in 9h 53m 15s: 889 missed, 3663 caught, 674 unviable, 17 timeouts

What does that mean?

• 5243 mutants tested: how many modifications were tried on the code.

• 889 missed: The important ones: after a modification was made, the test suite failed to catch this modification.

• 3663 caught: Good! The test suite caught these!

• 674 unviable: These modifications didn't compile. Nothing to do.

• 17 timeouts: Worth investigating; maybe a function can be marked to be skipped for mutation.

Starting to analyze the results

Due to the way cargo-mutants works, the "missed" results come in an arbitrary order, spread among all the source files:

rsvg/src/path_parser.rs:857:9: replace <impl fmt::Display for ParseError>::fmt -> fmt::Result with Ok(Default::default())
rsvg/src/drawing_ctx.rs:732:33: replace > with == in DrawingCtx::check_layer_nesting_depth
rsvg/src/filters/lighting.rs:931:16: replace / with * in Normal::bottom_left
rsvg/src/test_utils/compare_surfaces.rs:24:9: replace <impl fmt::Display for BufferDiff>::fmt -> fmt::Result with Ok(Default::default())
rsvg/src/filters/turbulence.rs:133:22: replace - with / in setup_seed
rsvg/src/document.rs:627:24: replace match guard is_mime_type(x, "image", "svg+xml") with false in ResourceType::from
rsvg/src/length.rs:472:57: replace * with + in CssLength<N, V>::to_points

So, I started by sorting the missed.txt file from the results. This is much better:

rsvg/src/accept_language.rs:136:9: replace AcceptLanguage::any_matches -> bool with false
rsvg/src/accept_language.rs:136:9: replace AcceptLanguage::any_matches -> bool with true
rsvg/src/accept_language.rs:78:9: replace <impl fmt::Display for AcceptLanguageError>::fmt -> fmt::Result with Ok(Default::default())
rsvg/src/angle.rs:40:22: replace < with <= in Angle::bisect
rsvg/src/angle.rs:41:56: replace - with + in Angle::bisect
rsvg/src/angle.rs:49:35: replace + with - in Angle::flip
rsvg/src/angle.rs:57:23: replace < with <= in Angle::normalize

With the sorted results, I can clearly see how cargo-mutants gradually does its modifications on (say) all the arithmetic and logic operators to try to find changes that would not be caught by the test suite.

Look at the first two lines from above, the ones that refer to AcceptLanguage::any_matches:

rsvg/src/accept_language.rs:136:9: replace AcceptLanguage::any_matches -> bool with false
rsvg/src/accept_language.rs:136:9: replace AcceptLanguage::any_matches -> bool with true

Now look at the corresponding lines in the source:

... impl AcceptLanguage {
135     fn any_matches(&self, tag: &LanguageTag) -> bool {
136         self.iter().any(|(self_tag, _weight)| tag.matches(self_tag))
137     }
... }
}

The two lines from missed.txt mean that if the body of this any_matches() function were replaced with just true or false, instead of its actual work, there would be no failed tests:

135     fn any_matches(&self, tag: &LanguageTag) -> bool {
136         false // or true, either version wouldn't affect the tests
137     }
}

This is bad! It indicates that the test suite does not check that this function, or the surrounding code, is working correctly. And yet, the test coverage report for those lines shows that they are indeed getting executed by the test suite. What is going on?

I think this is what is happening:

• The librsvg crate's tests do not have tests for AcceptLanguage::any_matches.
• The rsvg_convert crate's integration tests do have a test for its --accept-language option, and that is what causes this code to get executed and shown as covered in the coverage report.
• This run of cargo-mutants was just for the librsvg crate, not for the integrated librsvg plus rsvg_convert.

Getting a bit pedantic with the purpose of tests, rsvg-convert assumes that the underlying librsvg library works correctly. The library advertises support in its API for matching based on AcceptLanguage, even though it doesn't test it internally.

On the other hand, rsvg-convert has a test for its own --accept-language option, in the sense of "did we implement this command-line option correctly", not in the sense of "does librsvg implement the AcceptLanguage functionality correctly".

After adding a little unit test for AcceptLanguage::any_matches in the librsvg crate, we can run cargo-mutants just for that the accept_language.rs file again:

# cargo mutants --package librsvg --file accept_language.rs
Found 37 mutants to test
ok       Unmutated baseline in 24.9s build + 6.1s test
 INFO Auto-set test timeout to 31s
MISSED   rsvg/src/accept_language.rs:78:9: replace <impl fmt::Display for AcceptLanguageError>::fmt -> fmt::Result with Ok(Default::default()) in 4.8s build + 6.5s test
37 mutants tested in 2m 59s: 1 missed, 26 caught, 10 unviable

Great! As expected, we just have 1 missed mutant on that file now. Let's look into it.

The function in question is now <impl fmt::Display for AcceptLanguageError>::fmt, an error formatter for the AcceptLanguageError type:

impl fmt::Display for AcceptLanguageError {
    fn fmt(&self, f: &mut fmt::Formatter<'_>) -> fmt::Result {
        match self {
            Self::NoElements => write!(f, "no language tags in list"),
            Self::InvalidCharacters => write!(f, "invalid characters in language list"),
            Self::InvalidLanguageTag(e) => write!(f, "invalid language tag: {e}"),
            Self::InvalidWeight => write!(f, "invalid q= weight"),
        }
    }
}

What cargo-mutants means by "replace ... -> fmt::Result with Ok(Default::default()) is that if this function were modified to just be like this:

impl fmt::Display for AcceptLanguageError {
    fn fmt(&self, f: &mut fmt::Formatter<'_>) -> fmt::Result {
        Ok(Default::default())
    }
}

then no tests would catch that. Now, this is just a formatter function; the fmt::Result it returns is just whether the underlying call to write!() succeeded. When cargo-mutants discovers that it can change this function to return Ok(Default::default()) it is because fmt::Result is defined as Result<(), fmt::Error>, which implements Default because the unit type () implements Default.

In librsvg, those AcceptLanguageError errors are just surfaced as strings for rsvg-convert, so that if you give it a command-line argument with an invalid value like --accept-language=foo, it will print the appropriate error. However, rsvg-convert does not make any promises as to the content of error messages, so I think it is acceptable to not test this error formatter — just to make sure it handles all the cases, which is already guaranteed by its match statement. Rationale:

• There already are tests to ensure that the error codes are computed correctly in the parser for AcceptLanguage; those are the AcceptLanguageError's enumeration variants.

• There is a test in rsvg-convert's test suite to ensure that it detects invalid language tags and reports them.

For cases like this, cargo-mutants allows marking code to be skipped. After marking this fmt implementation with #[mutants::skip], there are no more missed mutants in accept_language.rs.

Yay!

Understanding the tool

You should absolutely read "using results" in the cargo-mutants documentation, which is very well-written. It gives excellent suggestions for how to deal with missed mutants. Again, these indicate potential gaps in your test suite. The documentation discusses how to think about what to do, and I found it very helpful.

Then you should read about genres of mutants. It tells you the kind of modifications that cargo-mutants does to your code. Apart from changing individual operators to try to compute incorrect results, it also does things like replacing whole function bodies to return a different value instead. What if a function returns Default::default() instead of your carefully computed value? What if a boolean function always returns true? What if a function that returns a HashMap always returns an empty hash table, or one full with the product of all keys and values? That is, do your tests actually check your invariants, or your assumptions about the shape of the results of computations? It is really interesting stuff!

Future work for librsvg

The documentation for cargo-mutants suggests how to use it in CI, to ensure that no uncaught mutants are merged into the code. I will probably investigate this once I have fixed all the missed mutants; this will take me a few weeks at least.

Librsvg already has the gitlab incantation to show test coverage for patches in merge requests, so it would be nice to know if the existing tests, or any new added tests, are missing any conditions in the MR. That can be caught with cargo-mutants.

Hackery relevant to my tests, but not to this article

If you are just reading about mutation testing, you can ignore this section. If you are interested in the practicalities of compilation, read on!

The source code for the librsvg crate uses a bit of conditional compilation to select whether to export functions that are used by the integration tests as well as the crate's internal tests. For example, there is some code for diffing two images, and this is used when comparing the pixel output of rendering an SVG to a reference image. For historical reasons, this code ended up in the main library, so that it can run its own internal tests, but then the rest of the integration tests also use this code to diff images. The librsvg crate exports the "diff two images" functions only if it is being compiled for the integration tests, and it doesn't export them for a normal build of the public API.

Somehow, cargo-mutants didn't understand this, and the integration tests did not build since the cargo feature to select that conditionally-compiled code... wasn't active, or something. I tried enabling it by hand with something like cargo mutants --package librsvg -- --features test-utils but that still didn't work.

So, I hacked up a temporary version of the source tree just for mutation testing, which always exports the functions for diffing images, without conditional compilation. In the future it might be possible to split out that code to a separate crate that is only used where needed and never exported. I am not sure how it would be structured, since that code also depends on librsvg's internal representation of pixel images. Maybe we can move the whole thing out to a separate crate? Stop using Cairo image surfaces as the way to represent pixel images? Who knows!
